The R4M "Orkan" Rocket System

By late 1943, the Luftwaffe was ensnared in a strategic crisis of unprecedented proportions. The Reichsverteidigung (Defense of the Reich) had devolved into intensive "battles of attrition" against Allied "Pulks"—massive, disciplined combat boxes of B-17 Flying Fortresses and B-24 Liberators designed to maximize mutual defensive fire. Archival records from the Erprobungsstellen (testing centers) at Tarnewitz and Wittmundhafen confirm that existing heavy armaments, such as the 30mm MK 103 and MK 108 cannons, were reaching the limits of their operational utility. While the MK 108 possessed significant destructive power, its low muzzle velocity resulted in a dangerously curved trajectory, forcing Jagdflieger to close within 150 meters to ensure a hit—placing them directly in the lethal cones of fire from the bombers’ defensive machine guns.

The failure points of conventional weaponry were increasingly manifest under high-speed combat conditions. Analytical assessment revealed that heavy cannons suffered from frequent mechanical stoppages and "belt-ripping" caused by centrifugal forces during high-speed banking and maneuvering. These deficiencies, coupled with the "lengthy approach" required for heavy-caliber weapons, exposed German interceptors to sustained return fire for prohibitive durations. This technical impasse contributed to the "Jägerschreck" (Fighter Fear) phenomenon. Reichsmarschall Hermann Göring, increasingly isolated from the logistical reality, attributed the lack of success to a failure of "fighting spirit" and ordered the establishment of Sturmstaffeln to press attacks "without regard to losses." However, the tactical vacuum necessitated a radical technological shift toward standoff weaponry that could annihilate a "Viermot" (four-engine bomber) from a distance beyond the enemy's effective reach.

The administrative landscape of the late-war Rüstungsindustrie was defined by decentralized oversight and the prioritization of "Special Commissions" (Sonderkommissionen). To optimize production, the RLM orchestrated the strategic decentralization of firms; most notably, the Optische und Mechanische Werke Osterode (OMW) was partitioned "for strategic reasons," with 70% of its capacity transferred to Curt Heber’s HEMAF and the remaining 30% to OWO. This split provided HEMAF with the industrial infrastructure required to develop the "O-Series" construction of "secret devices."

The development of the R4M relied heavily on scientific validation to overcome previous ballistic failures. Figures like Dr. Schneider of Zeiss and Dr. Walter Grasse of Rheinmetall-Borsig represented the tier of scientific oversight required to validate the complex ignition circuitry and folding-fin aerodynamics. Collaboration with the "Special Commission for Ground Radio" (Bodenfunk) was essential for integrating the rocket's electronic release systems into the evolving jet platforms.

The R4M was designated a "war-deciding" (kriegsentscheidend) weapon system, representing a significant departure from previous failed attempts like the RZ 65. Archival reports from the testing centers indicate that the RZ 65 suffered from an erratic "corkscrew trajectory" caused by unequal pressure distribution from the combustion chamber to the nozzles. The R4M solved these ballistic instabilities through a sophisticated folding-fin ( Klappflügel ) design.

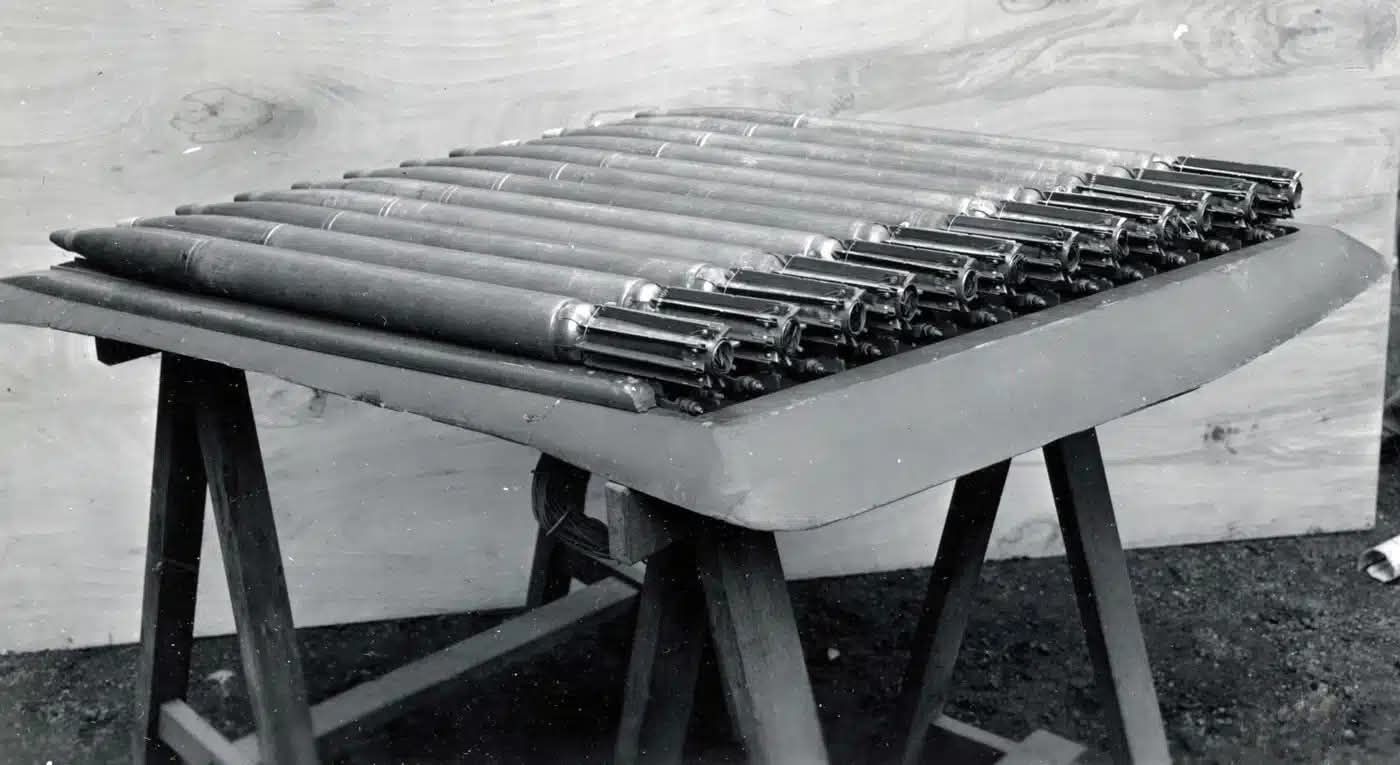

The engineering of the R4M focused on aerodynamic stability during high-speed deployment. The rocket's eight fins were held in a folded position by a spring-steel wire binding mechanism. This system was integrated with the wooden EG.-R4M launch rack, a design that prioritized weight efficiency and ease of fitment over the complex, heavy 50mm cannons Hitler had previously championed.

The pairing of the R4M with the Me 262 was intended to eliminate the "bottlenecks" in Reich defense. Tactically, the jet would approach from below or behind and release a Schrottschuss (shotgun fire) salvo. This method allowed the fighter to engage a "Viermot" from a range of 1,000 meters.

While the 50mm BK 5 was unpopular due to its slow rate of fire and frequent stoppages, the R4M delivered a "terrific blast" that could annihilate a heavy bomber with a single hit. Allied accounts describe the sheer psychological toll; the B-26 "Ugly Duckling" incident pilot, Vining, reported a blast that effectively "split the aircraft into four pieces."
