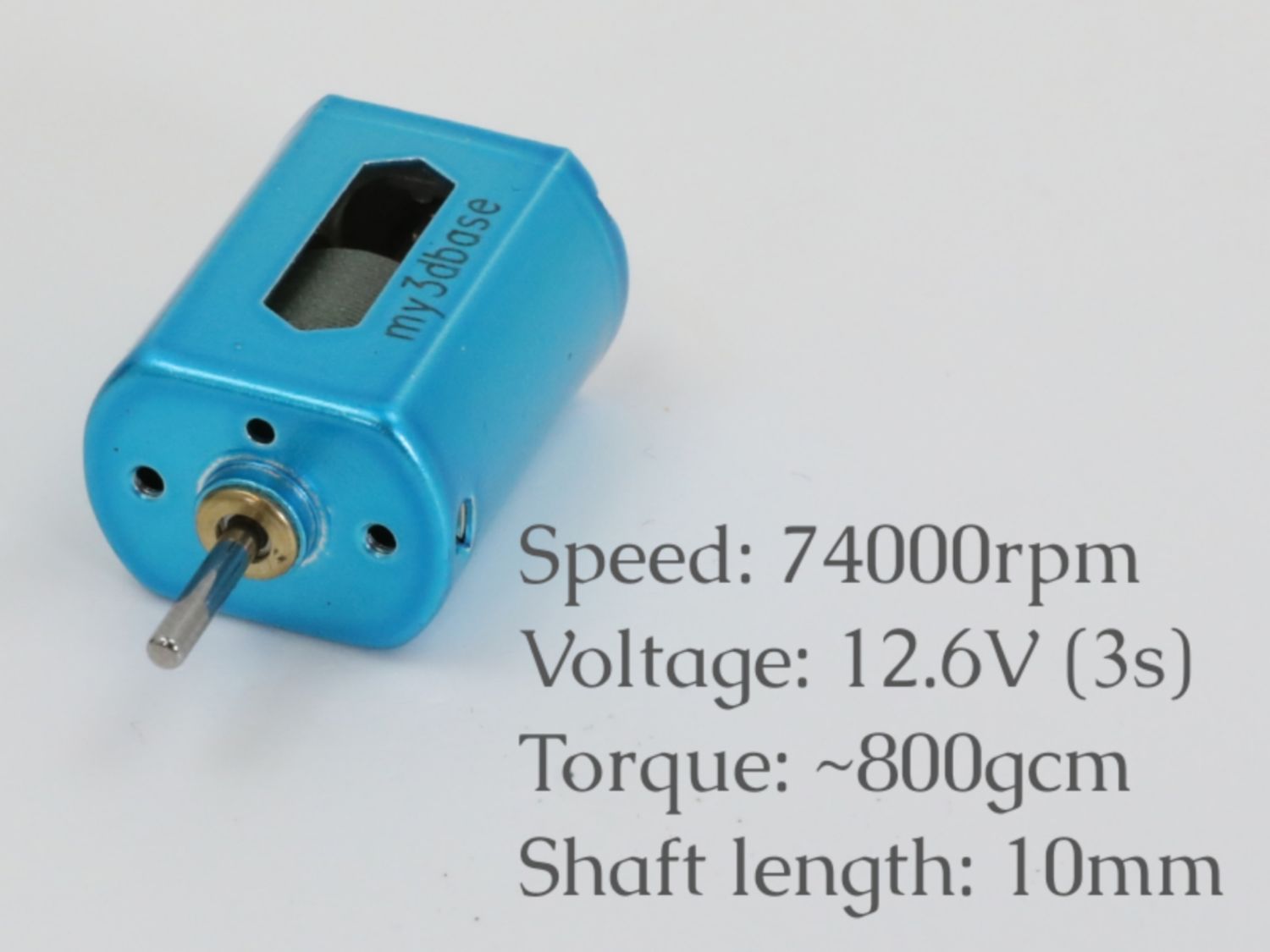

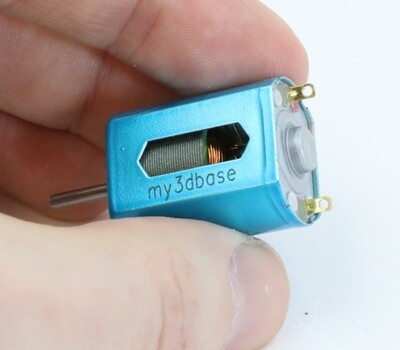

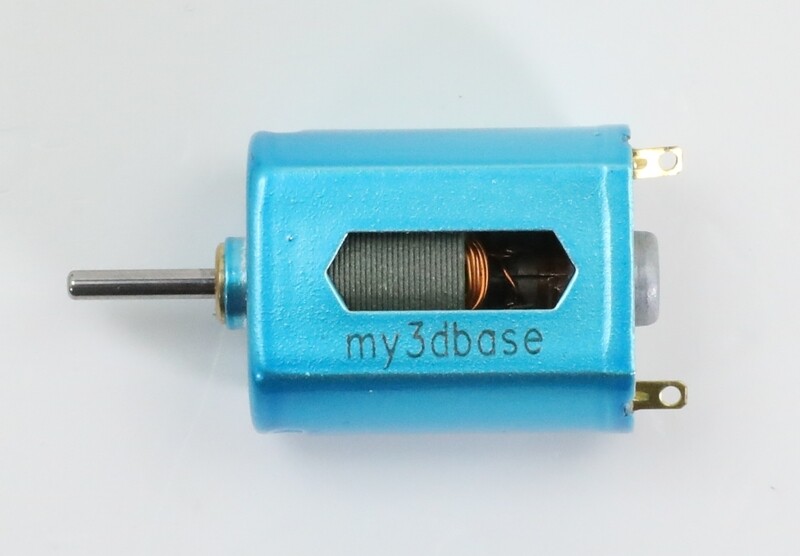

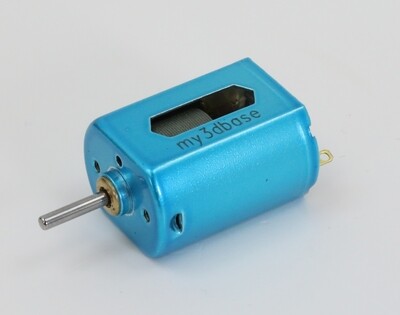

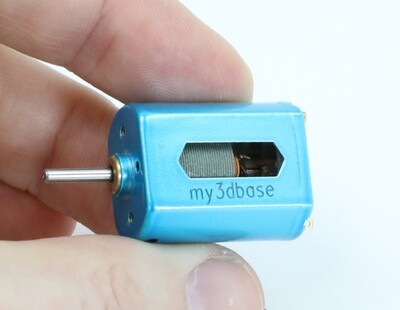

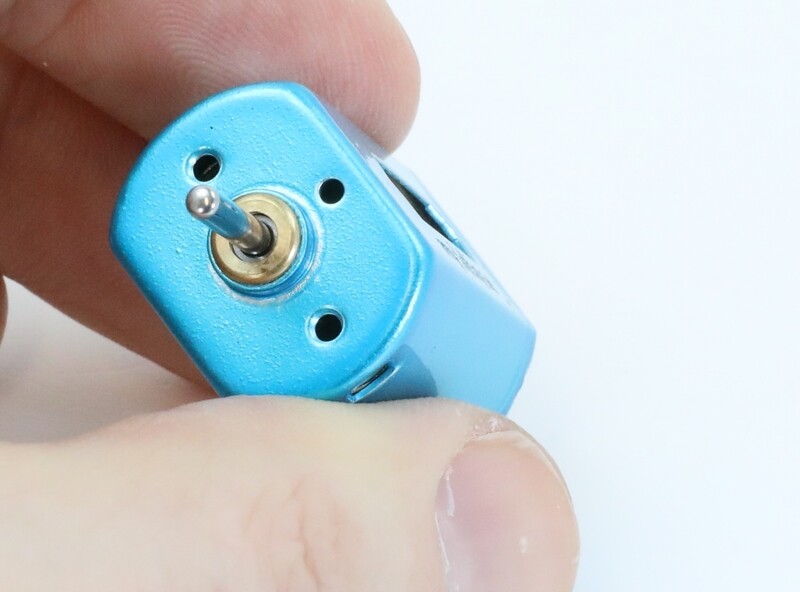

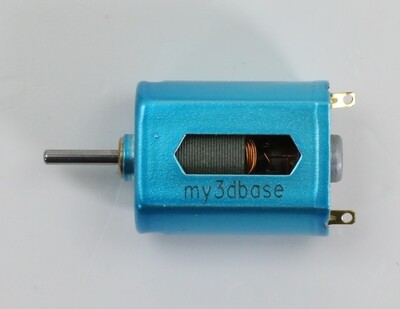

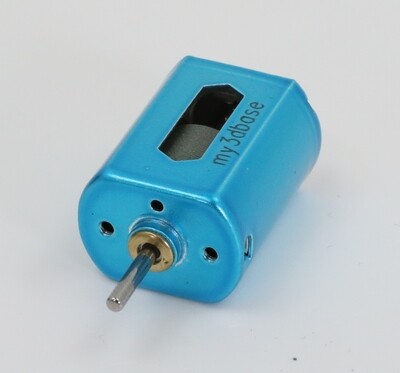

The 'RAIDEN' is our purpose designed blaster motor (type 130) optimized for maximum performance. Rated at 3s input voltage it speeds up to 74000 rpm. This results in high FPS even with smaller flywheels. It feature neodymium magnets, dual ball bearings and large venting holes. The shaft is extended to safely accommodate flywheels.
This is a perfect motor to power compact sidearm, but it is also powerful enough for full fledged primaries.
Item
Parameter
Unit/ Explanation
Rated voltage
12
V
max operating voltage
13.5
V
Run time
Don’t run under stall condition for long time, not more than 1s
Breakaway force
≥5
kg
Weight
23.8
g±5%
Shaft End Play
0.05~0.5
mm
No-load speed
75000
±10%RPM @ 12V
N0-load current
1.3
A(MAX) @ 12V
Stall current
3.5
A @ 1.5V
Starting voltage
8
V
Insulation resistance
10
MΩ(MIN) At dc 100V between the lead wires and motor housing.
Torque
800
gcm
Shaft length
10
mm
